Product Parameters

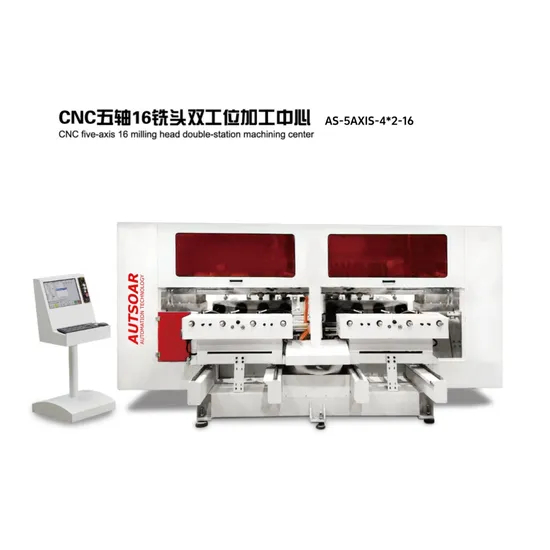

| Model AS-5AXIS-4*2-16 |
| Processing range |
long |
1200mm |
| wide |
230mm |
| thick |
230mm |
| X |
1800mm |
| Maximum moving speed |
Y |
1200mm |
| Z |
200mm |
| A |
±180° |
| B |
unlimited |

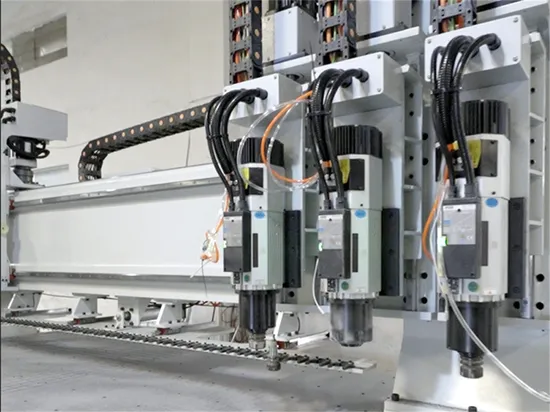

| Main spindle speed |
10000rpm-24000rpm |
| The transmission structure |

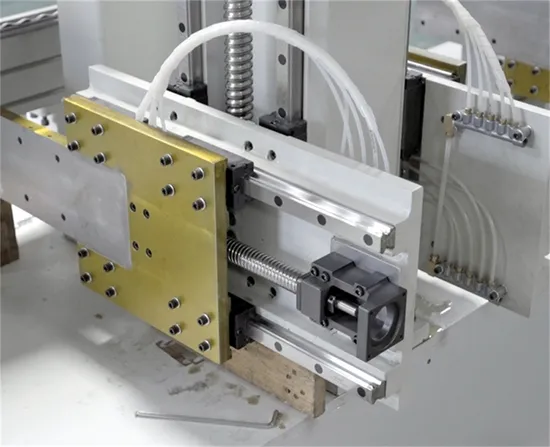

Precision ball screw transmission |
| Working voltage |
AC380V/50Hz |
| Machine weight |
About 6500kg |

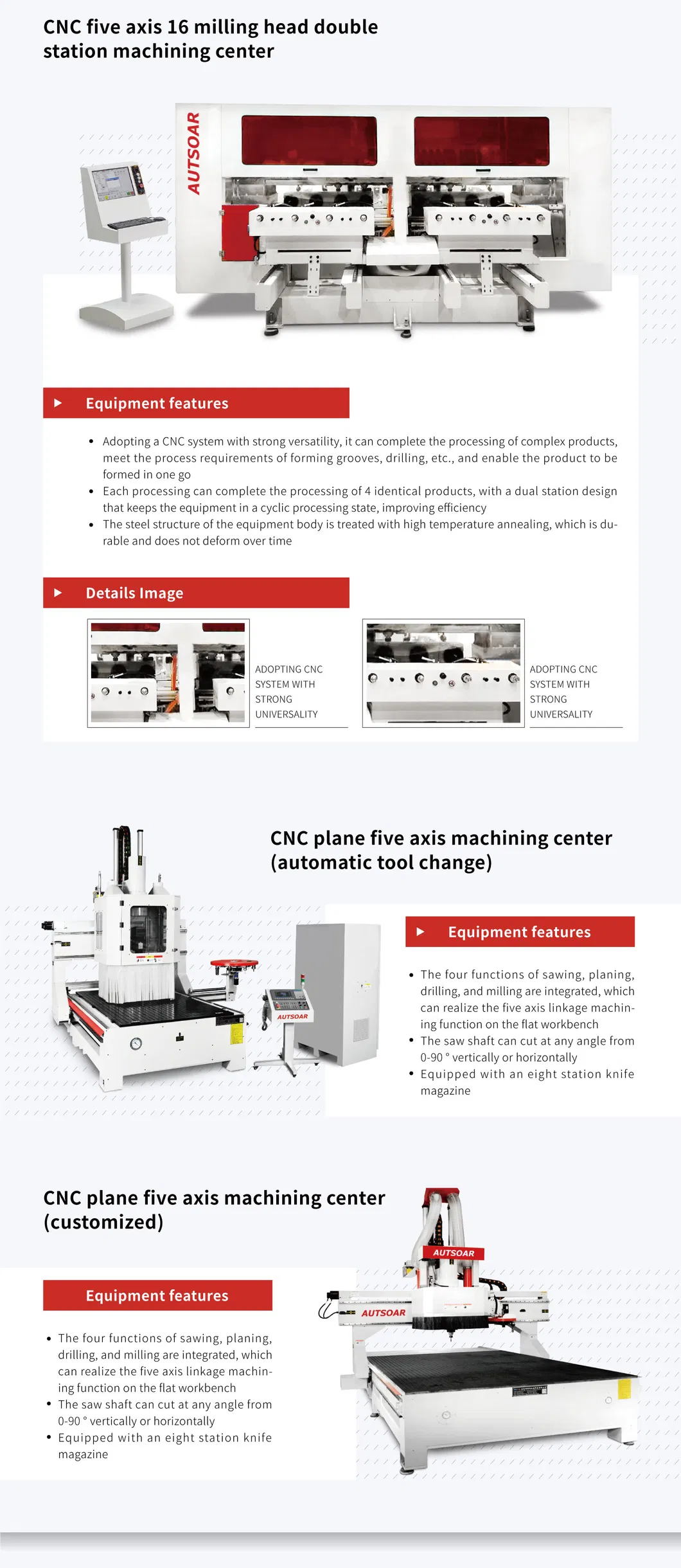

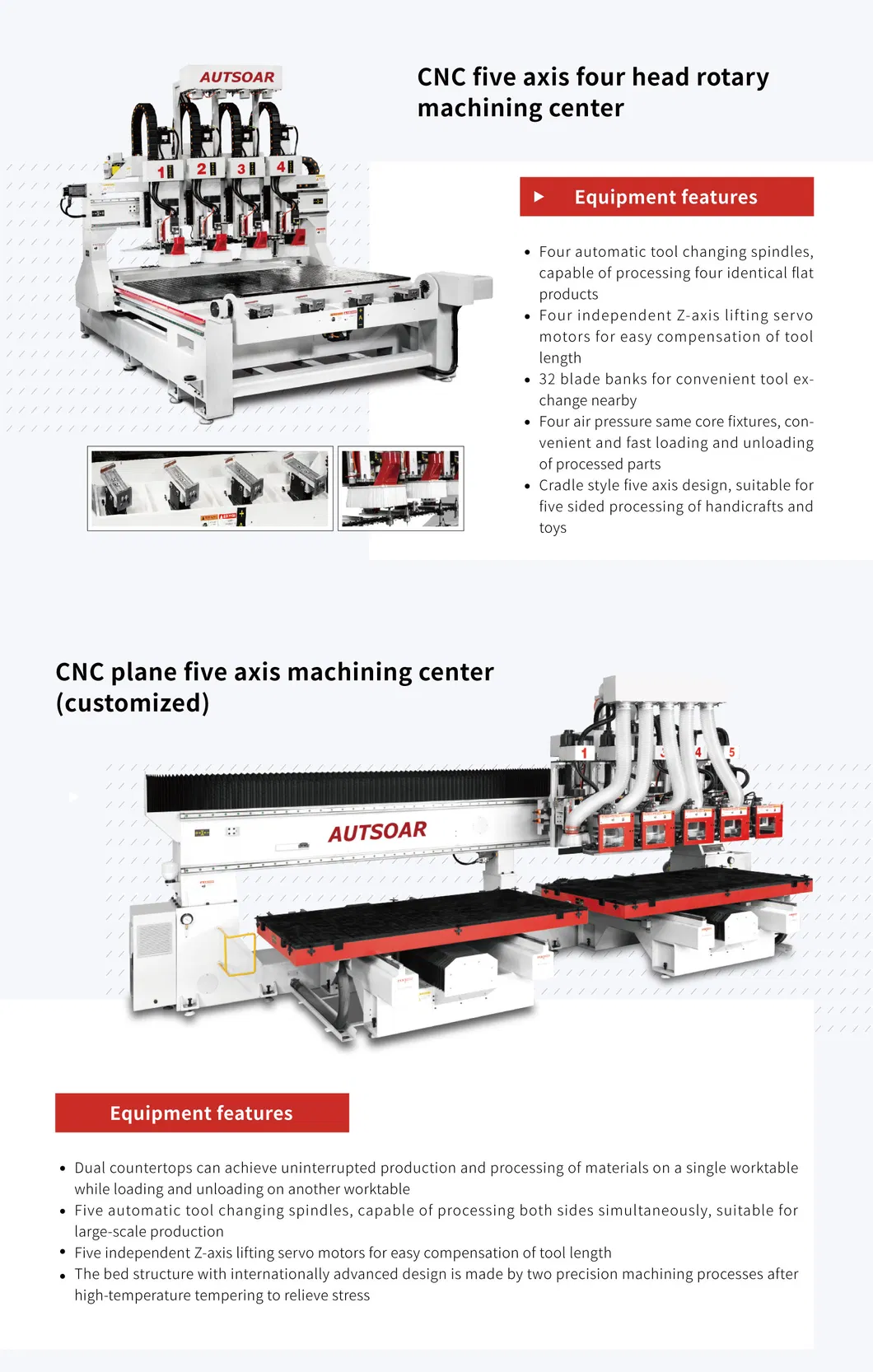

Equipment features:
1. Adopting a CNC system with strong versatility, it can complete the processing of complex products, meet the process requirements of forming grooves, drilling, etc., and enable the product to be formed in one go
2. Each processing can complete the processing of 4 identical products, with a dual station design that keeps the equipment in a cyclic processing state, improving efficiency
The steel structure of the equipment body is treated with high temperature annealing, which is durable and does not deform at all
Applications: Wooden furniture industry, furniture decoration, musical instruments, wooden crafts, large panel carving, solid wood furniture, solid wood murals, composite doors, paint free doors, cabinet doors, advertising industry, mold industry, relief, toy production, bedside tables, screen sculptures, etc.
Product Description
Sample
Packaging & Shipping
Certifications
FAQ
1. Question: How to transport the machine?
Answer: We can send our machines by sea, land, and railway
2- Question: Is the quality guaranteed?
Answer: Each device is inspected to ensure quality before being shipped out, and after-sales service is provided in a timely manner
3-Can it be customized?
Answer: If you have special requirements, we can certainly customize the machine according to your requirements to meet your needs.
