The Factory Supplies Five Axis CNC Carving Machines, Wood Carving Machines, and CNC Carving Machines for Furniture Wood Production

Share to:

The Factory Supplies Five Axis CNC Carving Machines, Wood Carving Machines, and CNC Carving Machines for Furniture Wood Production

Customization:	Available
After-sales Service:	Support Online Services
Warranty:	24 Months

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

AS-5AXIS-TC3-1625

Certification

ISO, CE

CNC or Not

CNC

Voltage

380V

Installation of Power Input

26kw

Machine Net Size

3800X2400X3000mm

Working Voltage

AC380V/50Hz

Machine Weight

About 3800kg

Transport Package

Standard Export Wooden Crate

Specification

Standard

Origin

China

Production Capacity

200 Sets Per Month

Product Description

The Factory Supplies Five Axis CNC Carving Machines, Wood Carving Machines, and CNC Carving Machines for Furniture Wood Production

Travel range	-X-axis travel: 1530mm -Y-axis travel: 2550mm -Z-axis travel: 490mm -B-axis travel: continuous rotation -C-axis travel: ± 270
Working parameters	1. Maximum moving speed: -X-axis speed: 50m/min -Y-axis speed: 50m/min -Z-axis speed: 20m/min 2. Install power input: 26kw 3. General working voltage: 380VX3P 4. Power supply: AC380V/50Hz 5. Compressed air pressure: 6bar 6. Machine net size: length x width x height: 3800x2400x3000mm 7. Net size of electric control box: 1220x700x1420mm 8. Total mechanical mass: approximately 3800kg

Applications: Wooden furniture industry, furniture decoration, musical instruments, wooden crafts, large panel carving, solid wood furniture, solid wood murals, composite doors, paint free doors, cabinet doors, advertising industry, mold industry, relief, toy production, bedside tables, screen sculptures, etc.

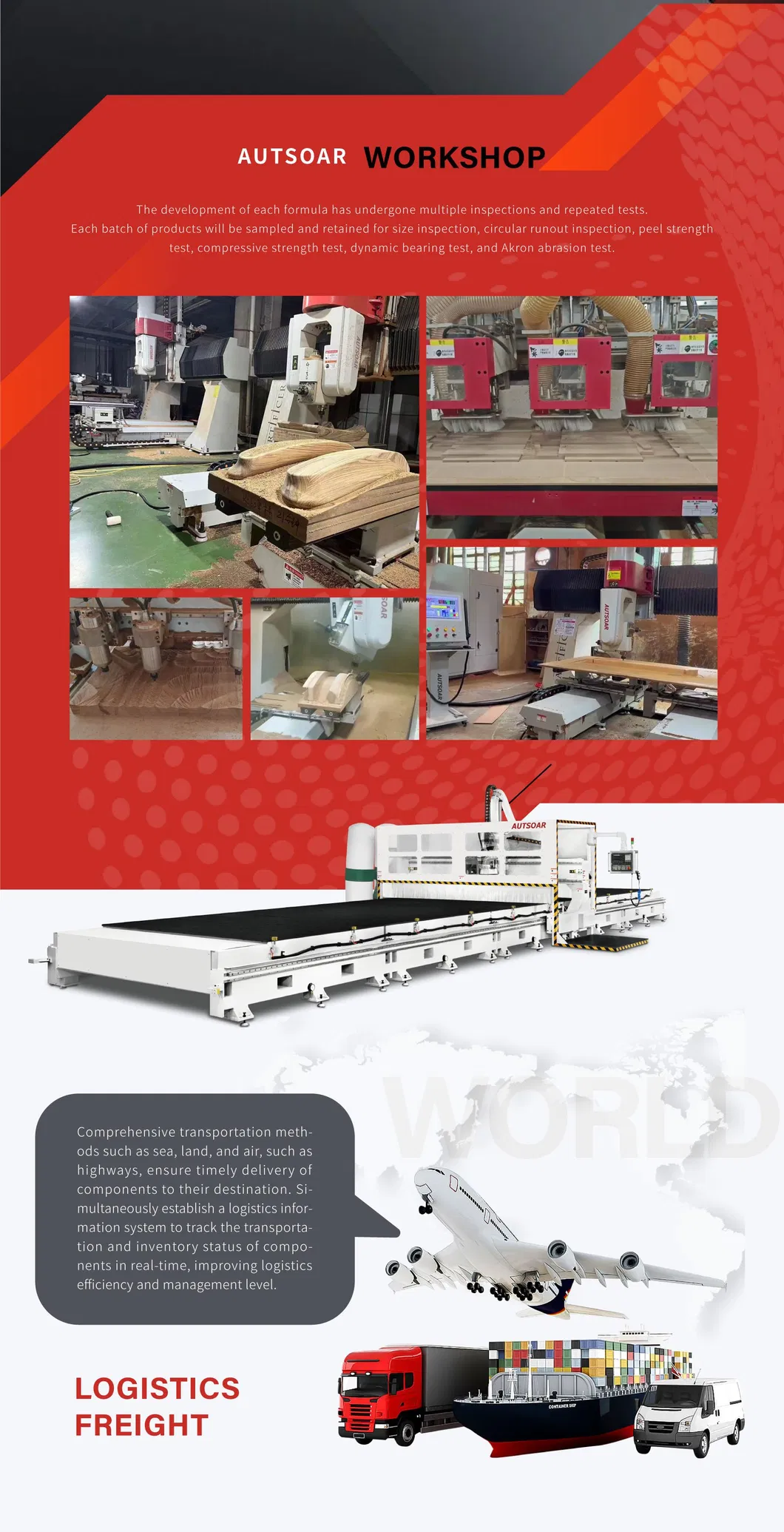

1. Question: How to transport the machine?
Answer: We can send our machines by sea, land, and railway

2- Question: Is the quality guaranteed?
Answer: Each device is inspected to ensure quality before being shipped out, and after-sales service is provided in a timely manner

3-Can it be customized?
Answer: If you have special requirements, we can certainly customize the machine according to your requirements to meet your needs.
